Google Bimba

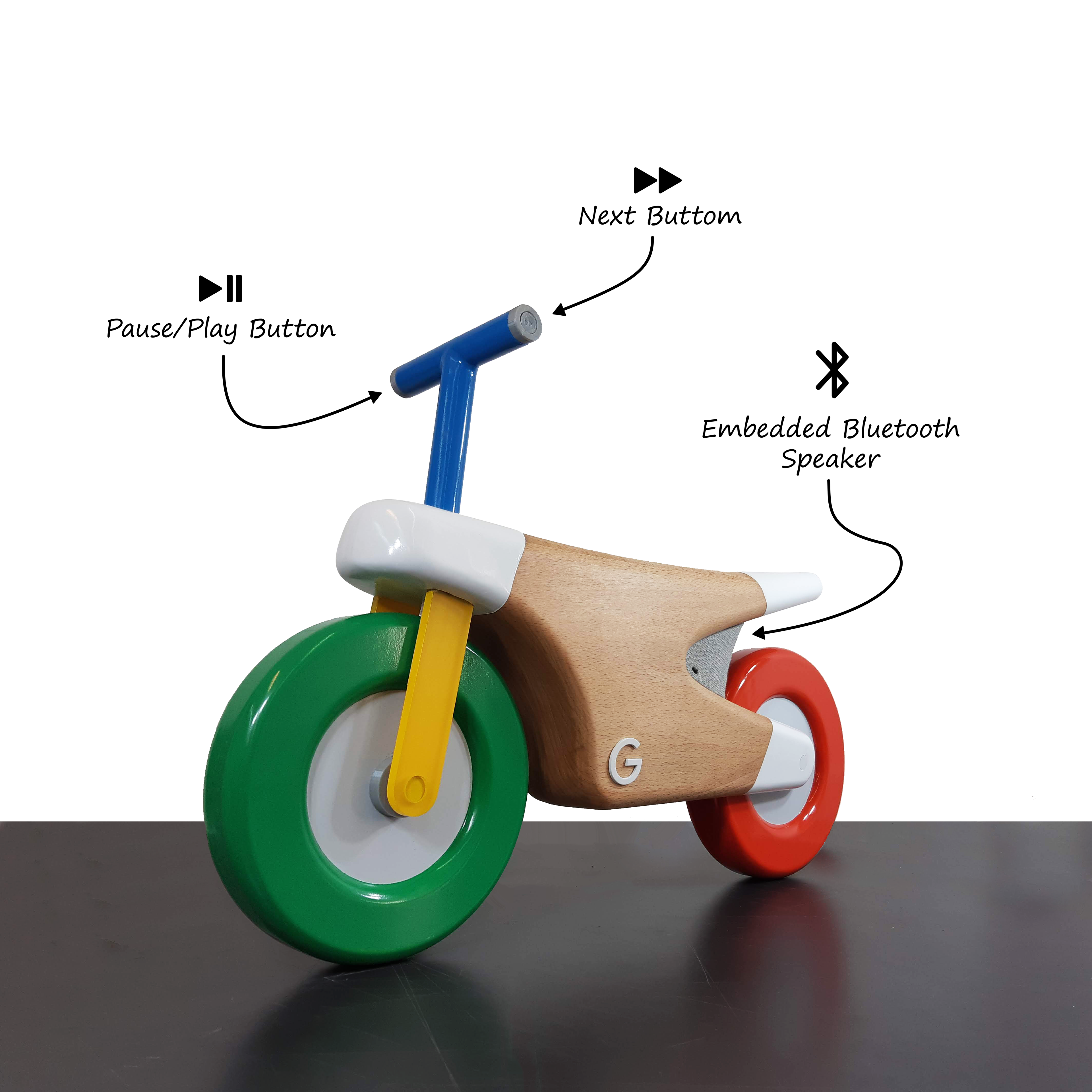

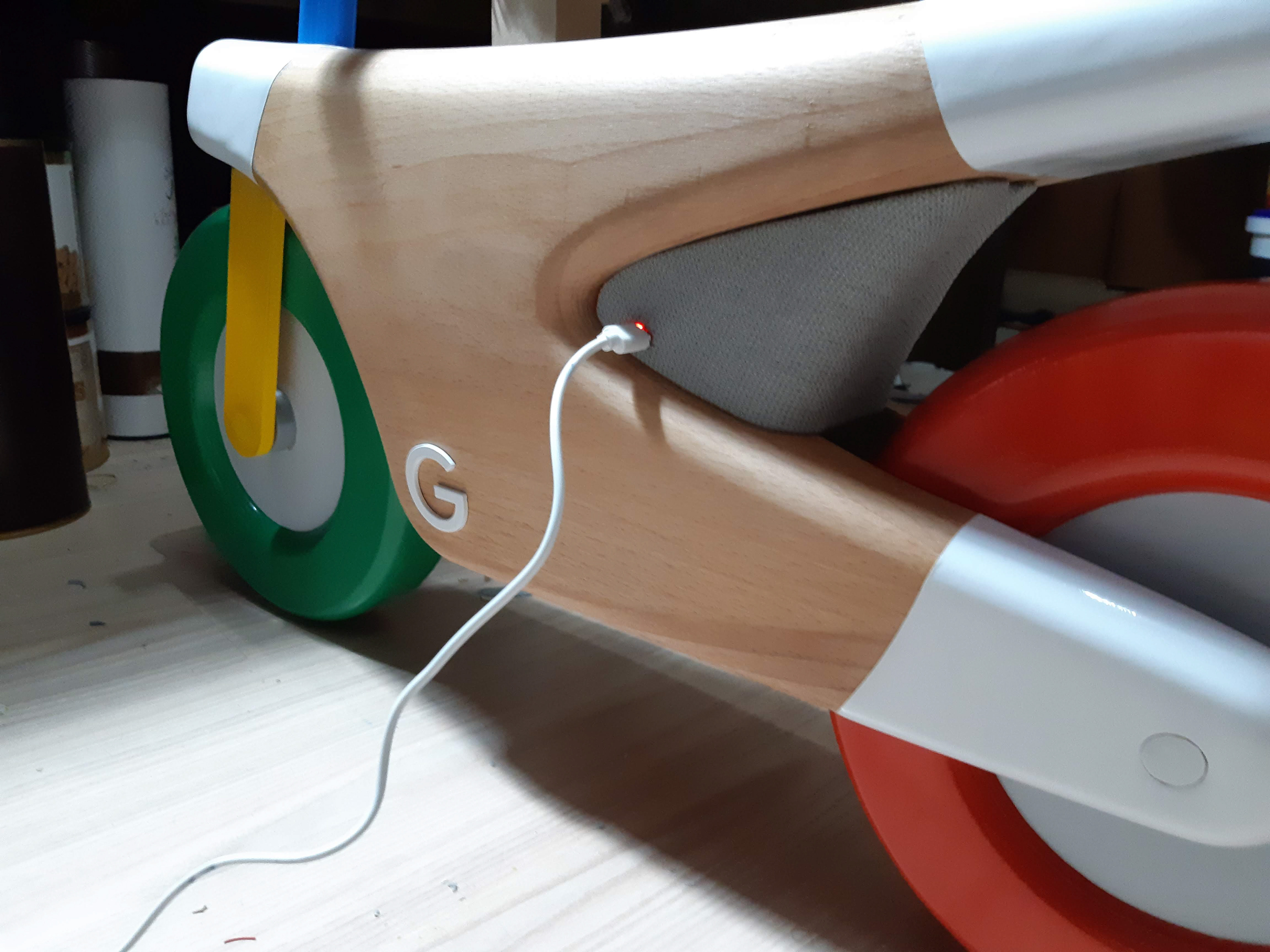

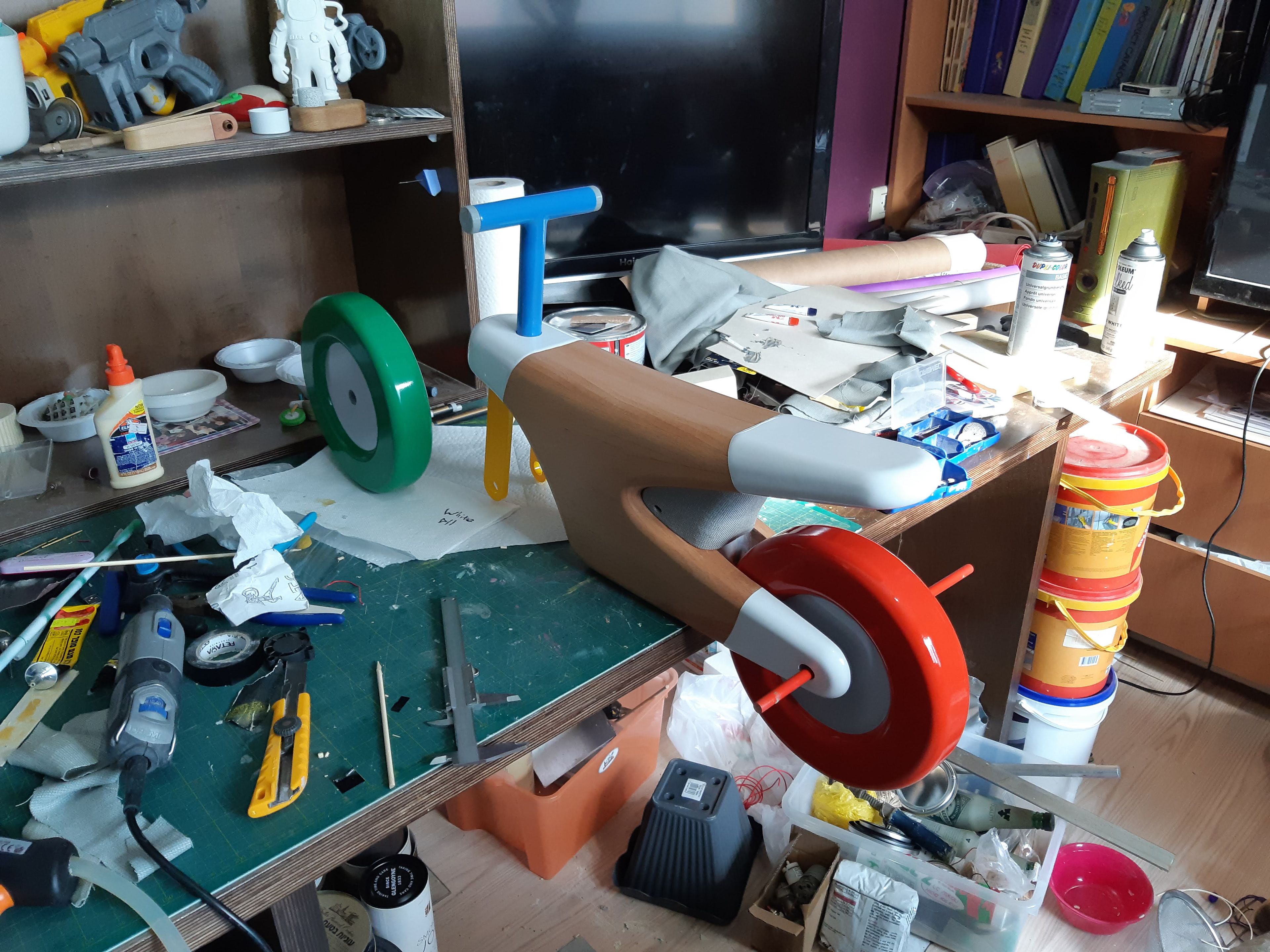

For our final second-semester hand-in, we were tasked to design a bimba. I made a Google-inspired bimba using their signature 4 bold colors and embedding a Bluetooth speaker. The speaker is controlled by 2 buttons on both sides of the handlebar.
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/ccf142b8-5294-45a3-8729-9d35f5446fdf_rw_3840.png?h=e1ae986218e512960113075afbffafe1)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/09fd4f35-2798-4cb2-a448-98368ccf031a_rw_3840.jpg?h=8bac25d6242d8ac6d8d30299f0ab9229)

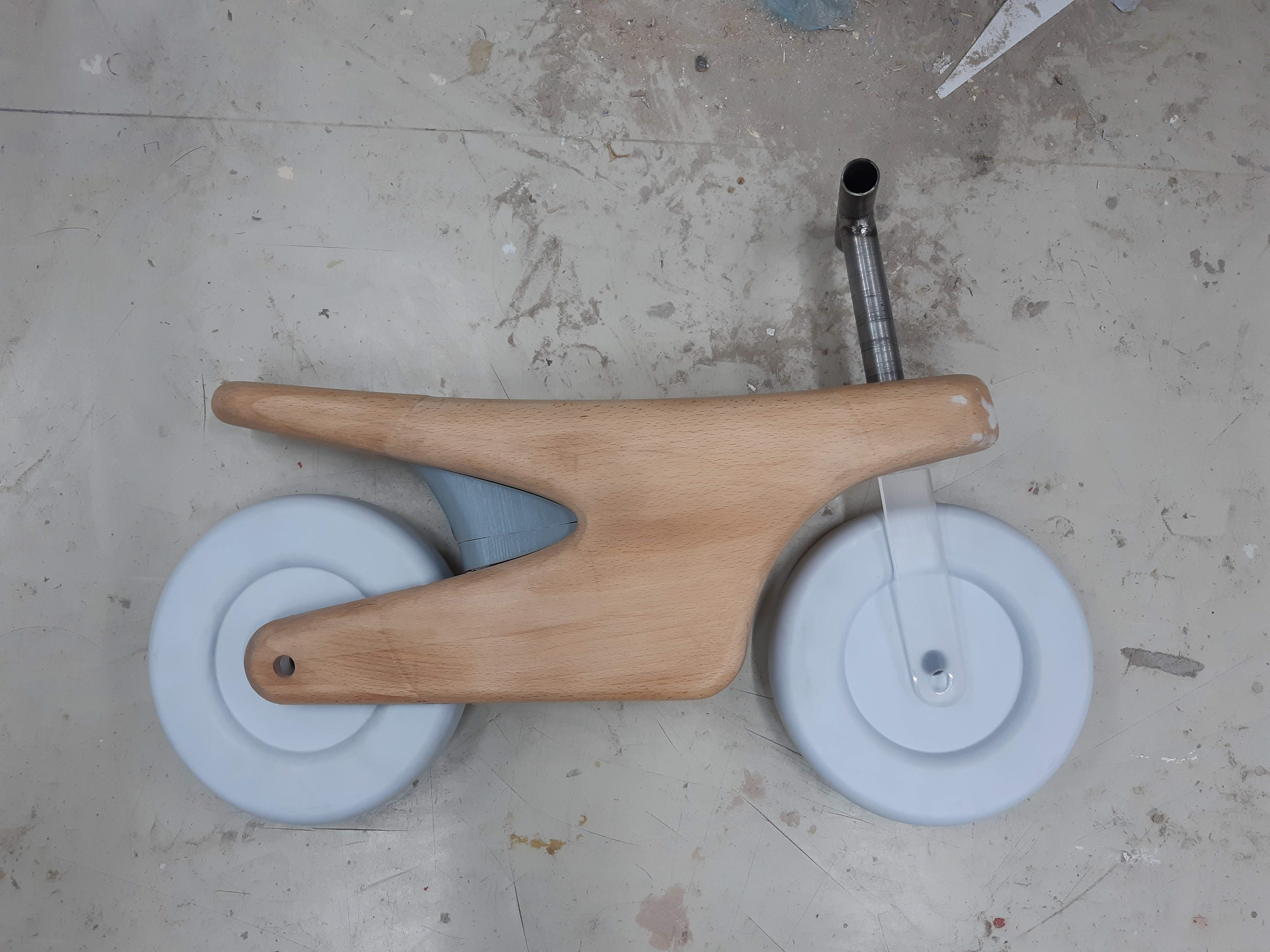

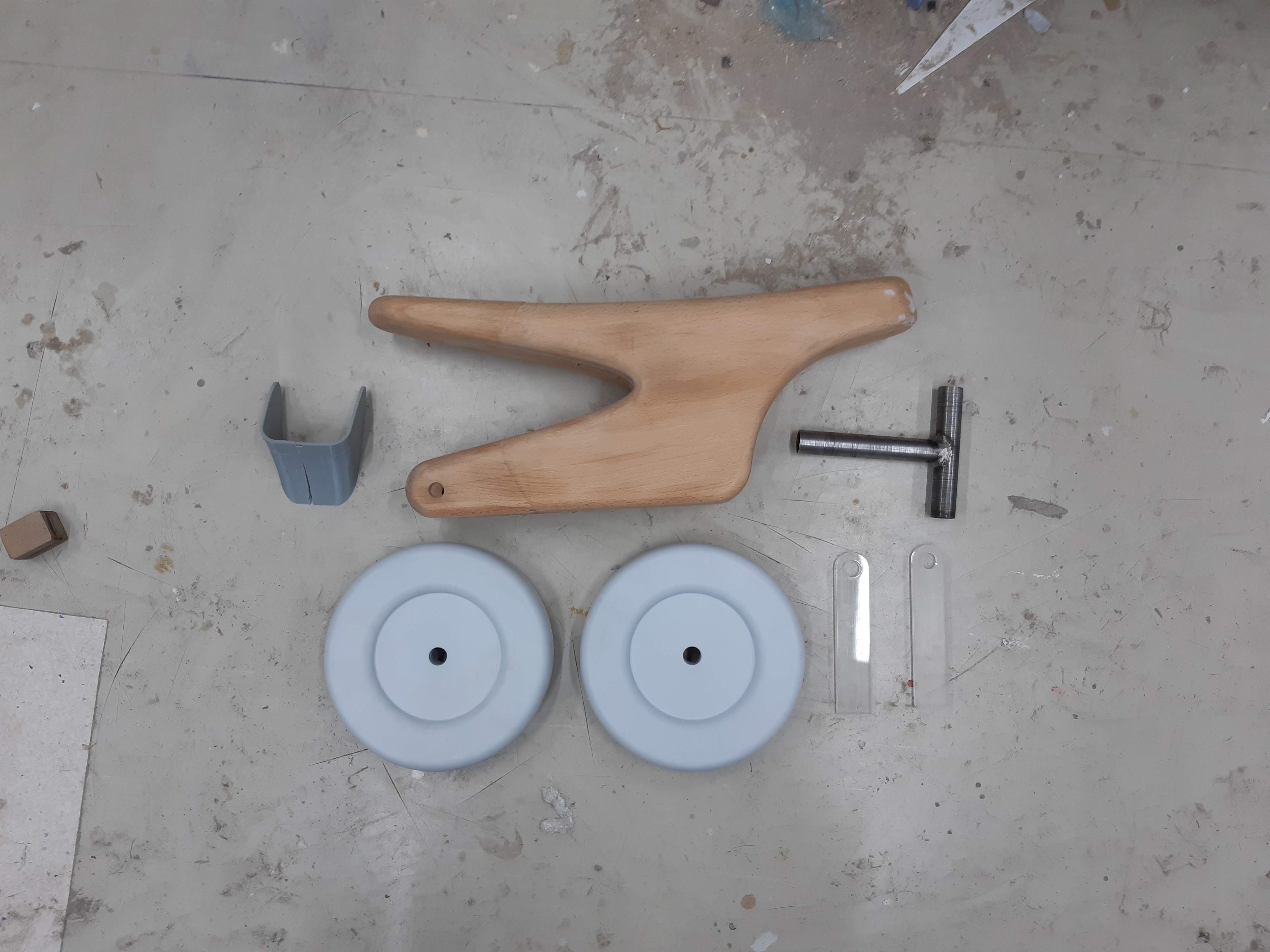

Bimba components:

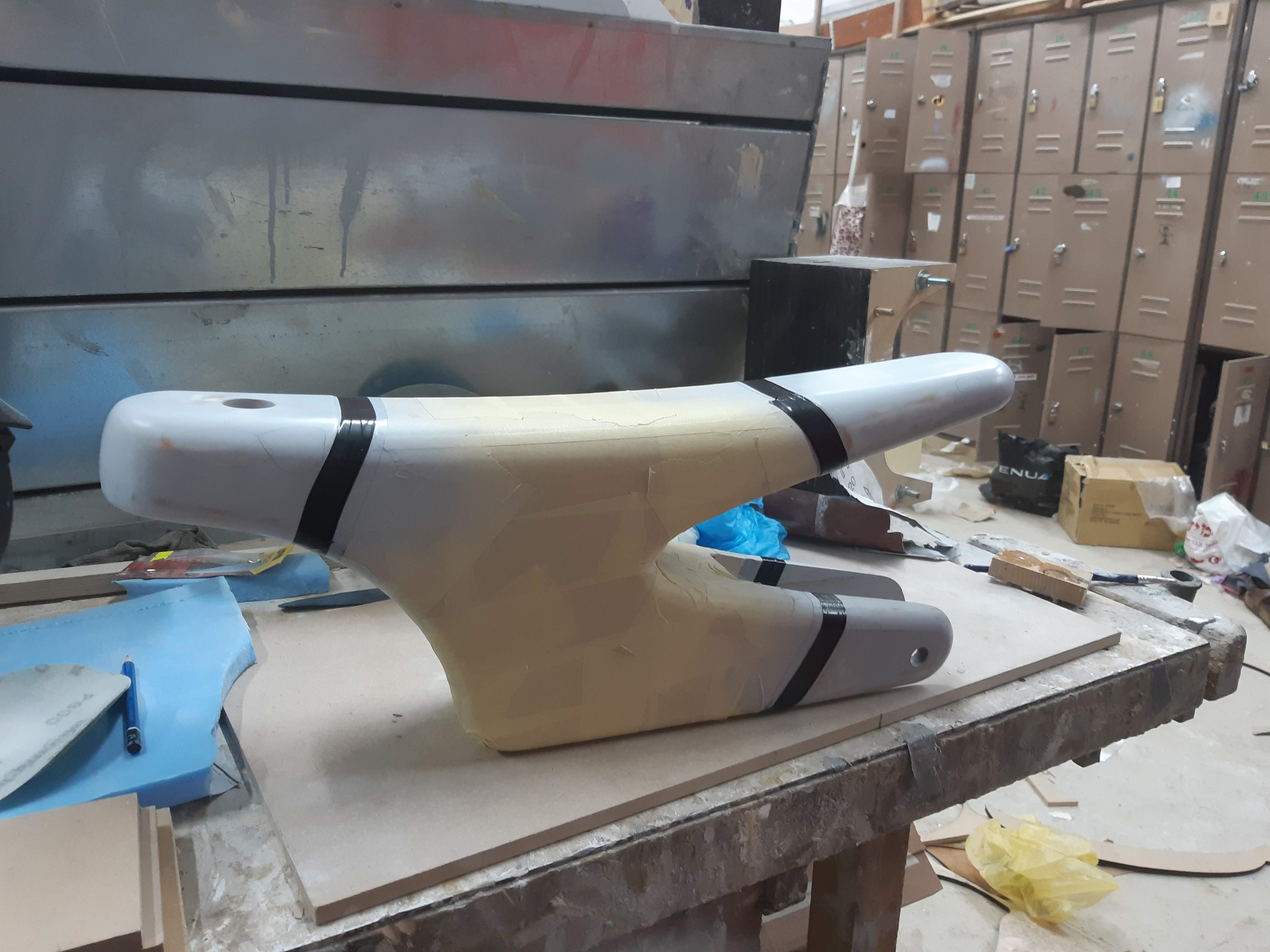

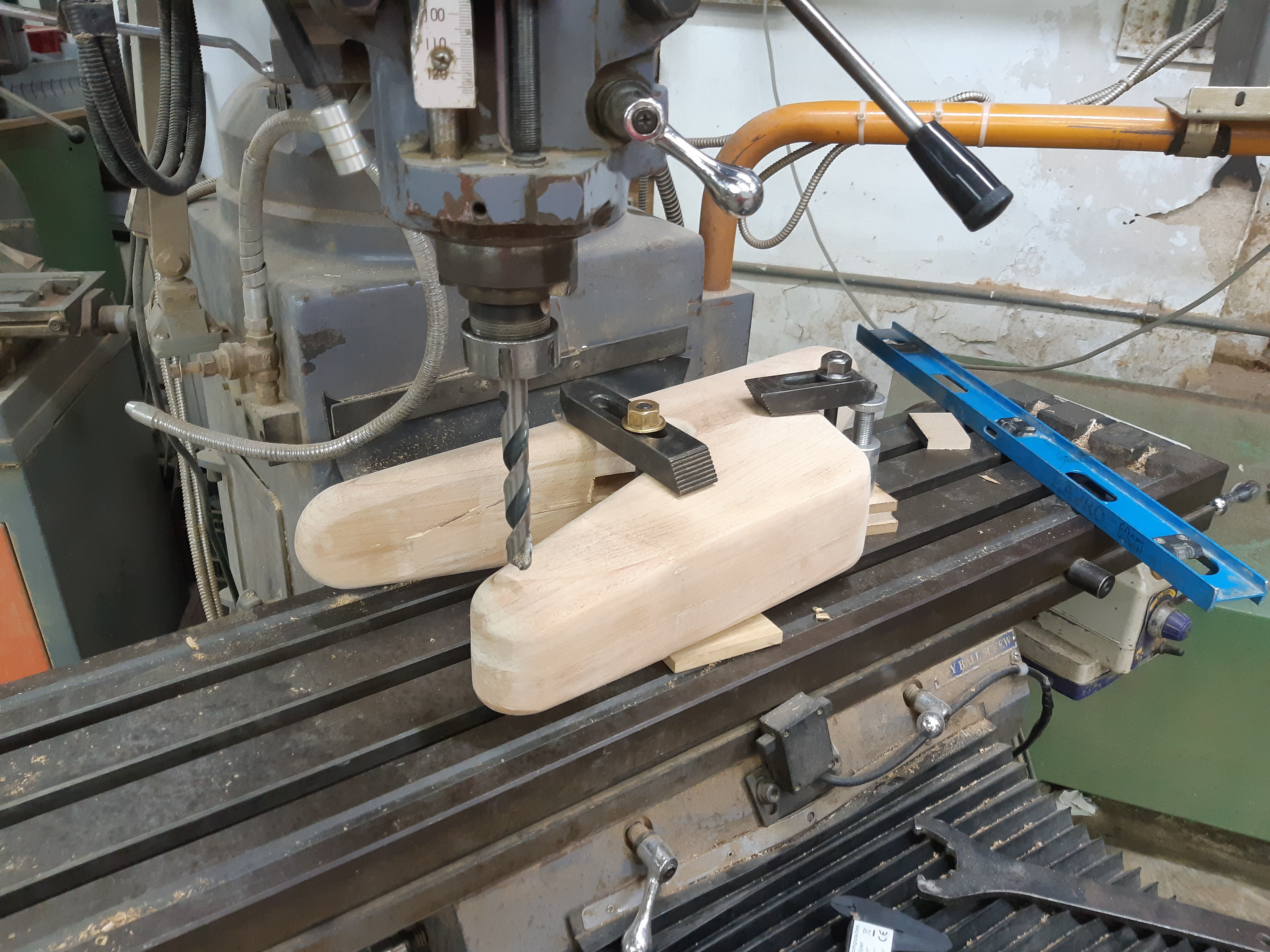

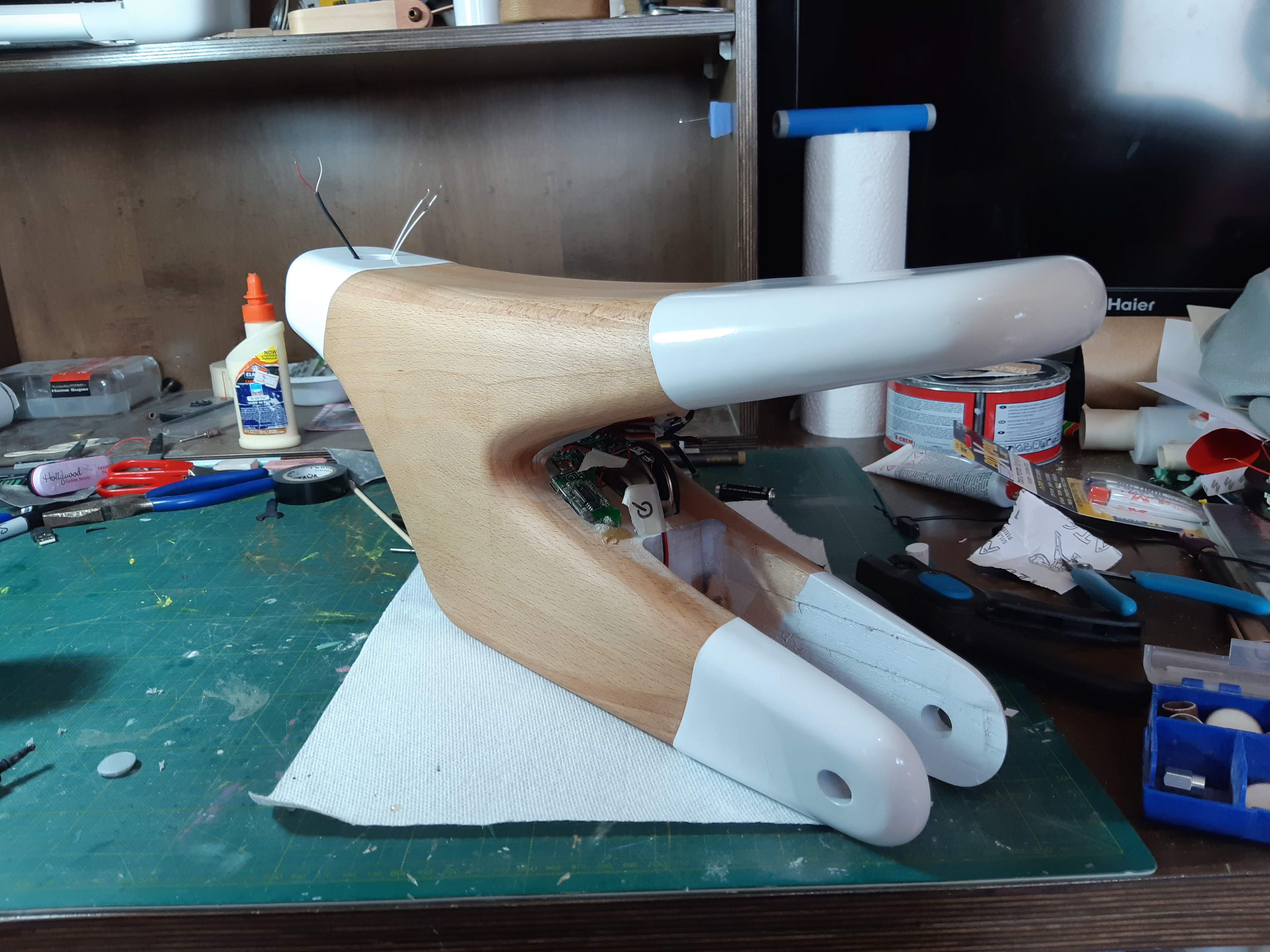

Body: CNC machined birch wood - refined with traditional machining - masked paint

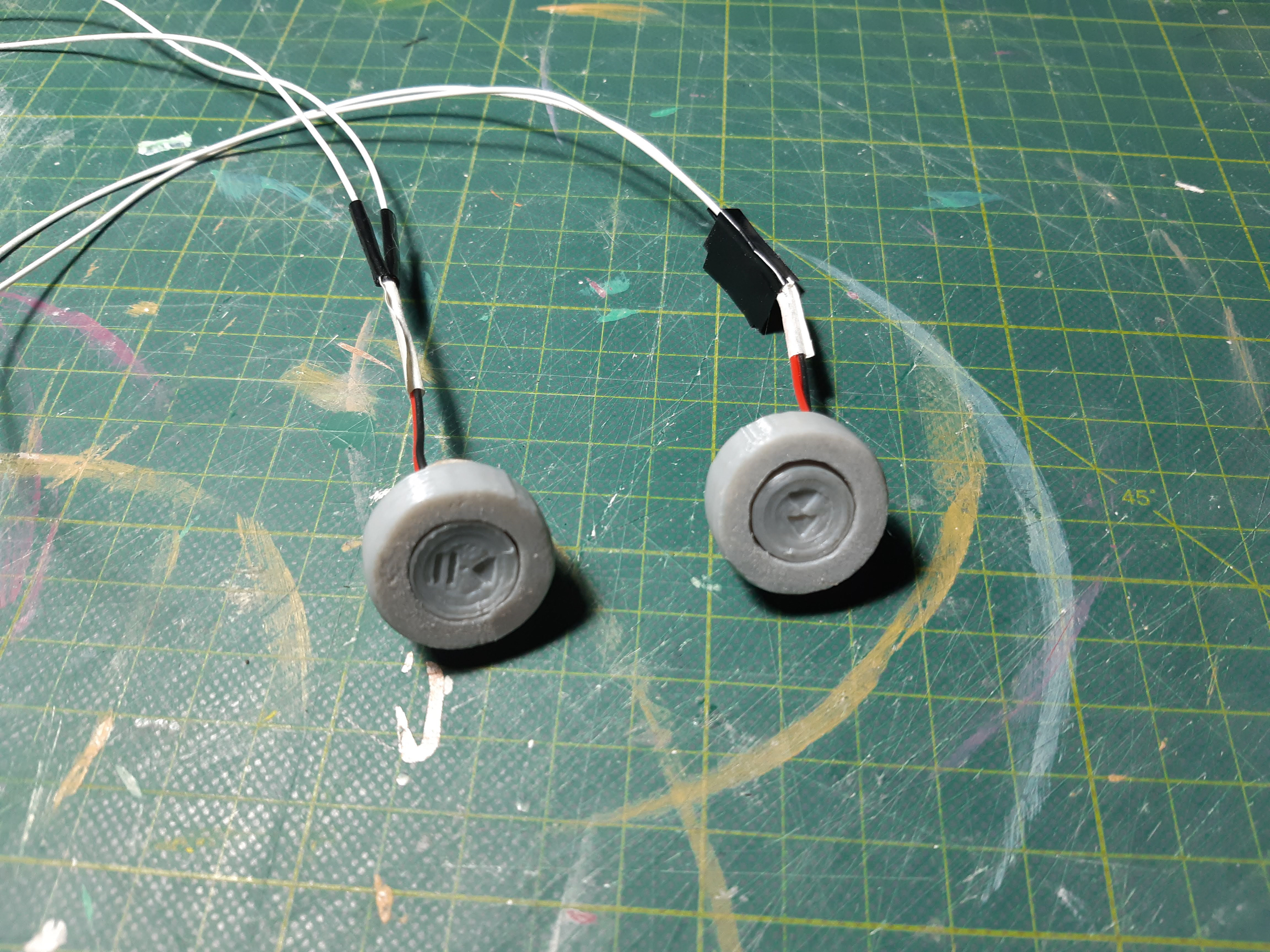

Handlebar: Welded metal pipes with 3d printed buttons
Front Fork: Lasercut 12mm perspex - Sprayed on one side for a finished gloss effect

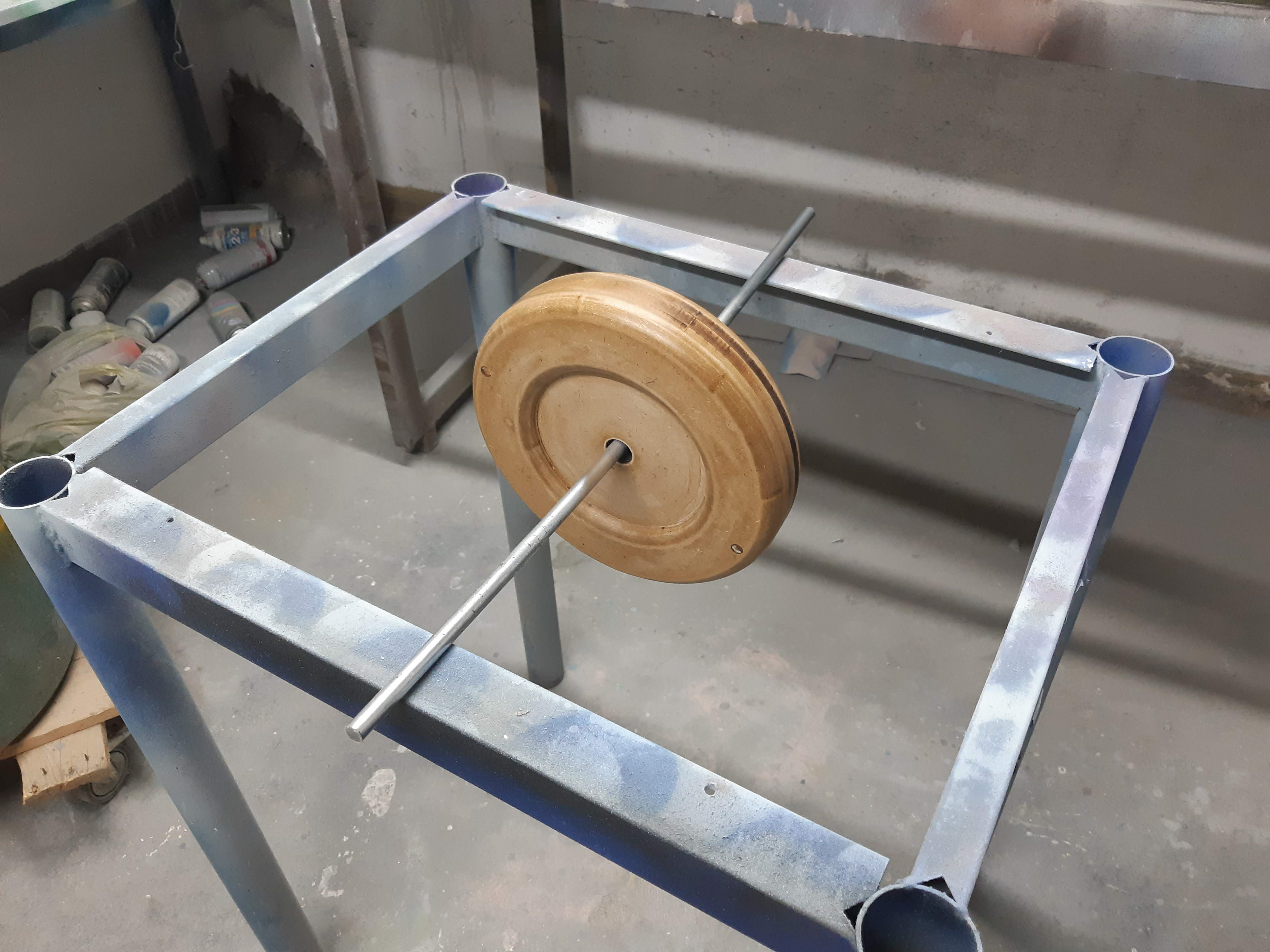

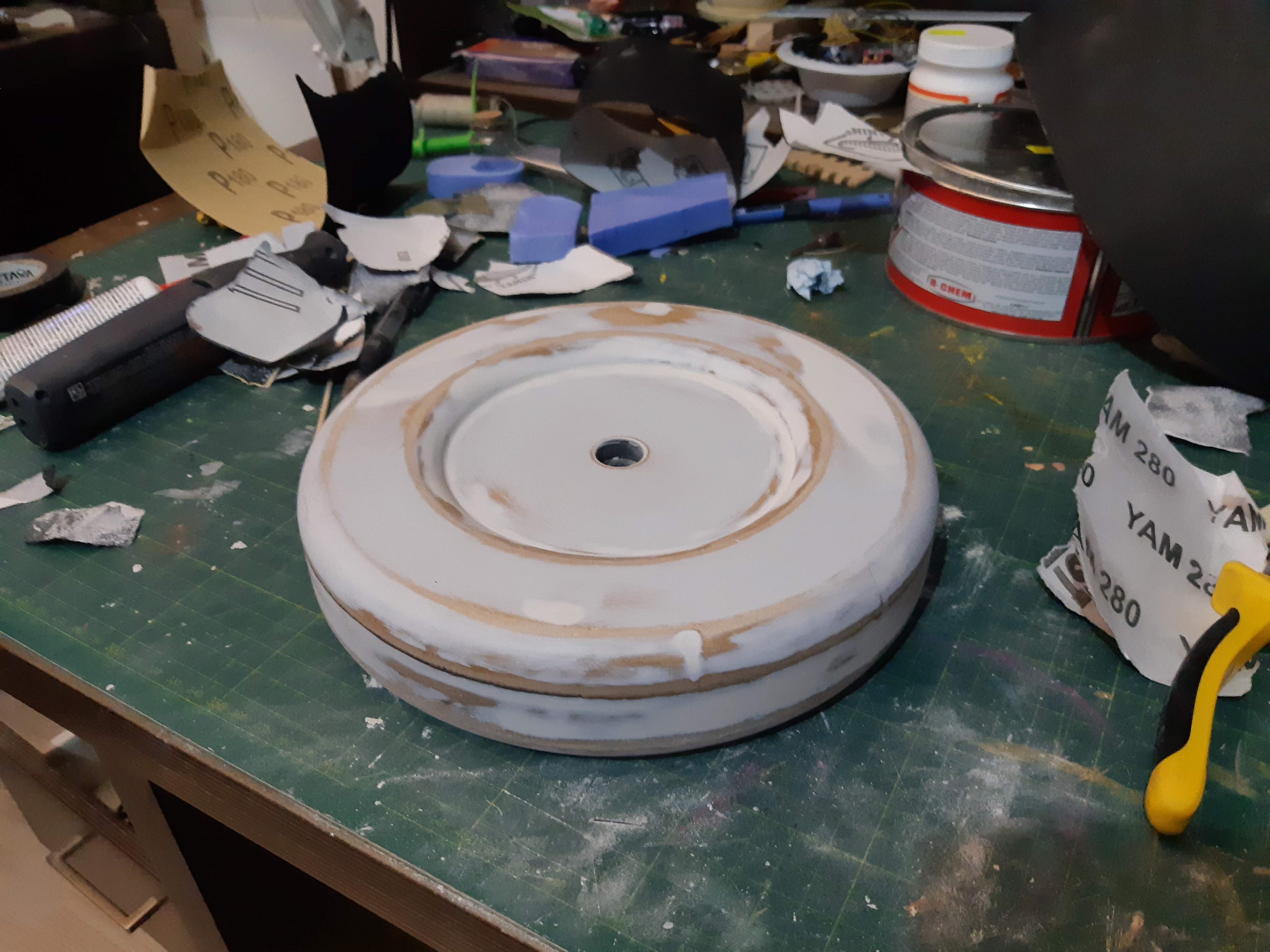

Wheels: Lasercut layers of MDF wood - refined on a lathe - masked paint
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/976c3d0d-d695-45d4-9afc-1201592cc9cc_rw_3840.jpg?h=d98b3610be2daec3185ff92cc022a35b)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/d49cd8c3-037e-4eaf-a14d-70e2ffb0f1be_rw_3840.jpg?h=2310ab91abf1b691a7146b529d7dda8d)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/bbe3802a-3123-4e2f-9f7c-d2fbbe5e3f3c_rw_3840.jpg?h=2a40e3a3c5447428663e6bfb27c4bef9)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/c4633956-1988-47d1-b29f-27f836abd60f_rw_3840.jpg?h=a372dd4dd3d9c33b0799aeb87a84c3bb)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/5534fe41-5aba-4c0b-b91d-5c3e9f349450_rw_3840.jpg?h=5595a05eb9b6243757aa03b5bc9dd4d9)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/15e7ec97-4029-4117-9514-de896a2b6d25_rw_3840.jpg?h=d8ba21e5629753171c9b7c5736f83213)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/ad0d8bae-5daa-4d60-bb9f-e9447b5c1667_rw_3840.jpg?h=1d018e10e366f6e30d628c52450988b3)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/08932d70-ec9e-4e7c-9843-e76663de8218_rw_3840.jpg?h=e4c19ec88367f2eb582e29d33aacfdae)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/fbecca0c-ba50-4042-90d2-eb002727b19f_rw_3840.jpg?h=53b496f58878b3c9269b321ef7ca635c)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/d4960e5c-715f-41df-92ec-0d8426cb7938_rw_3840.jpg?h=2666daa7c5f4149c260f9b134139ba65)
Enlargement Project

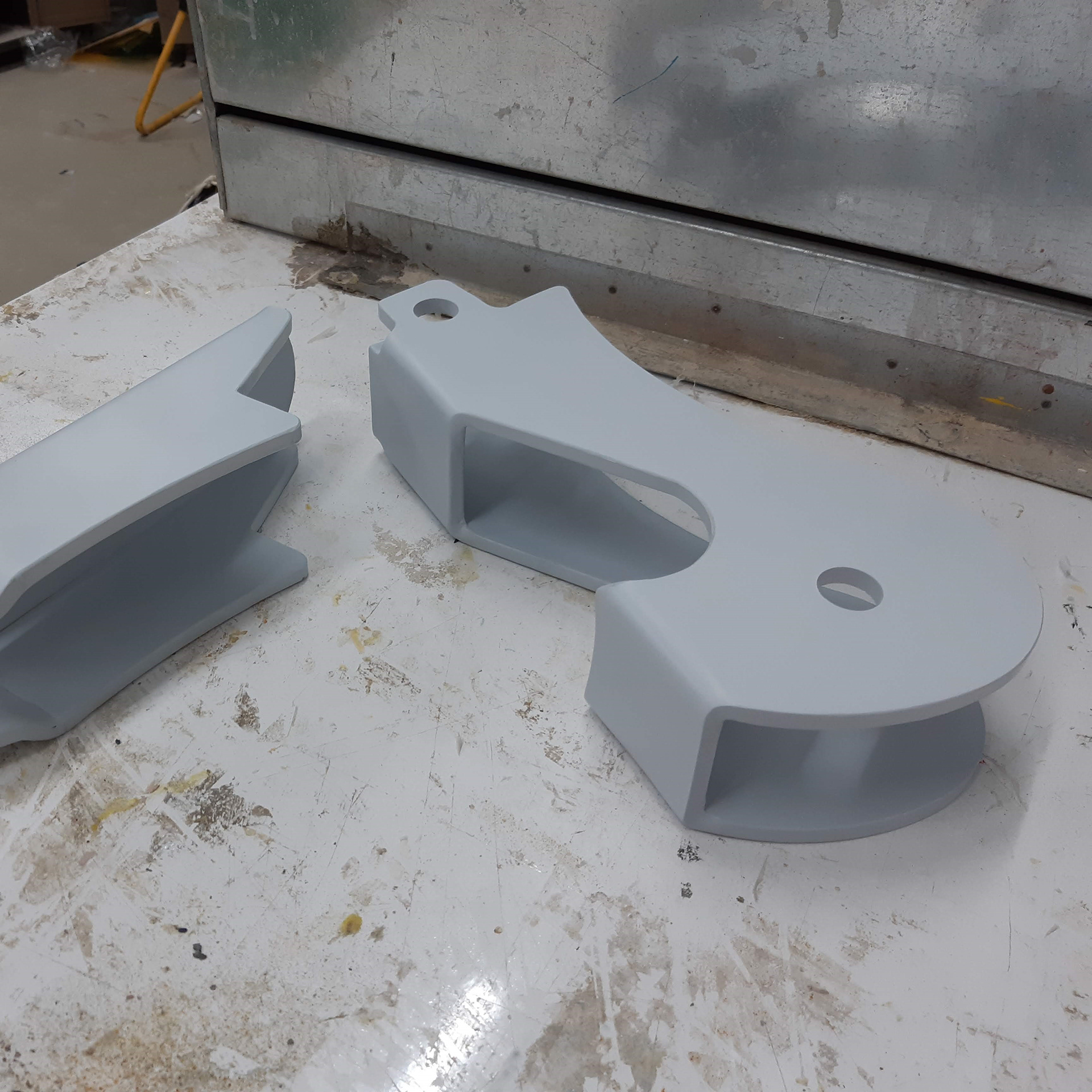

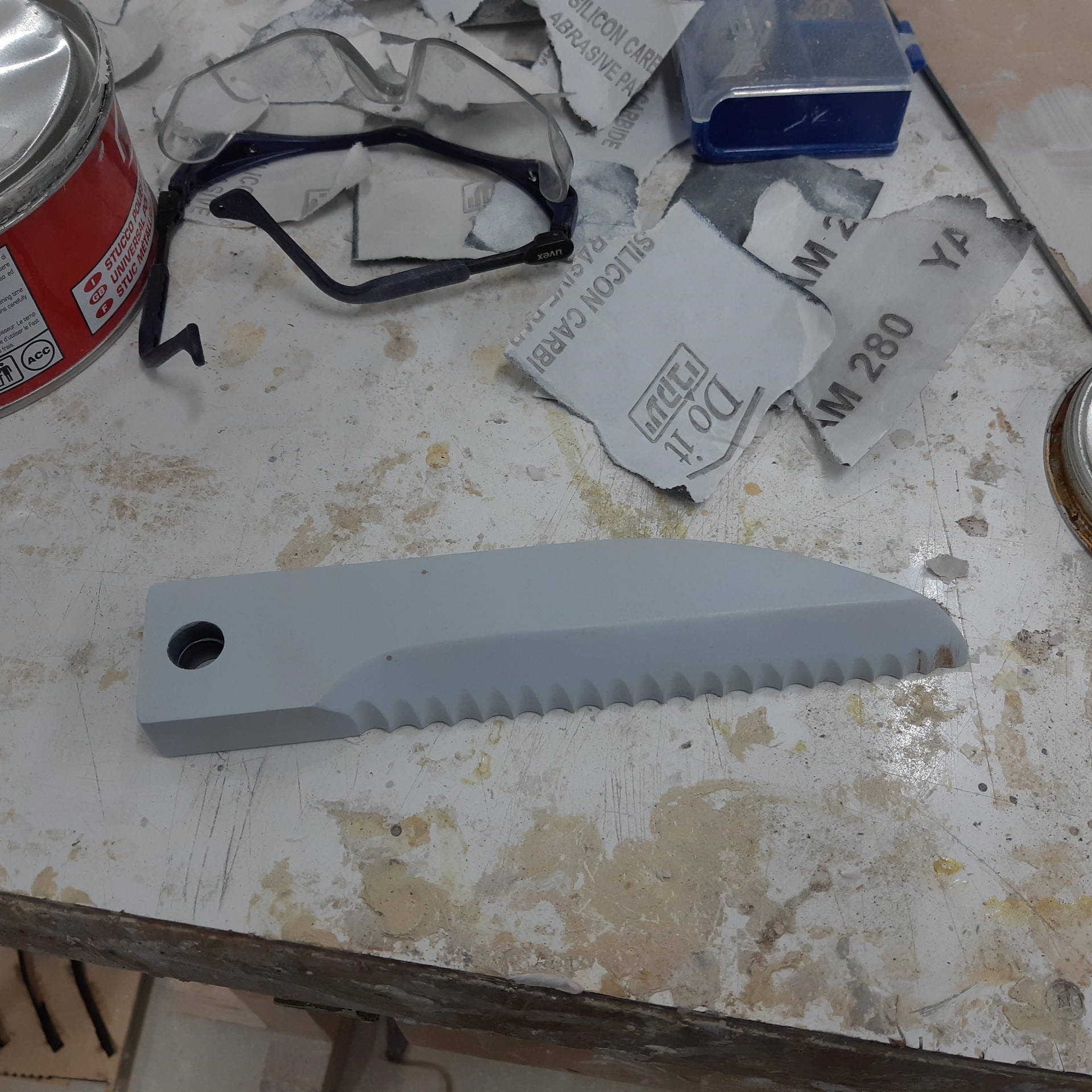

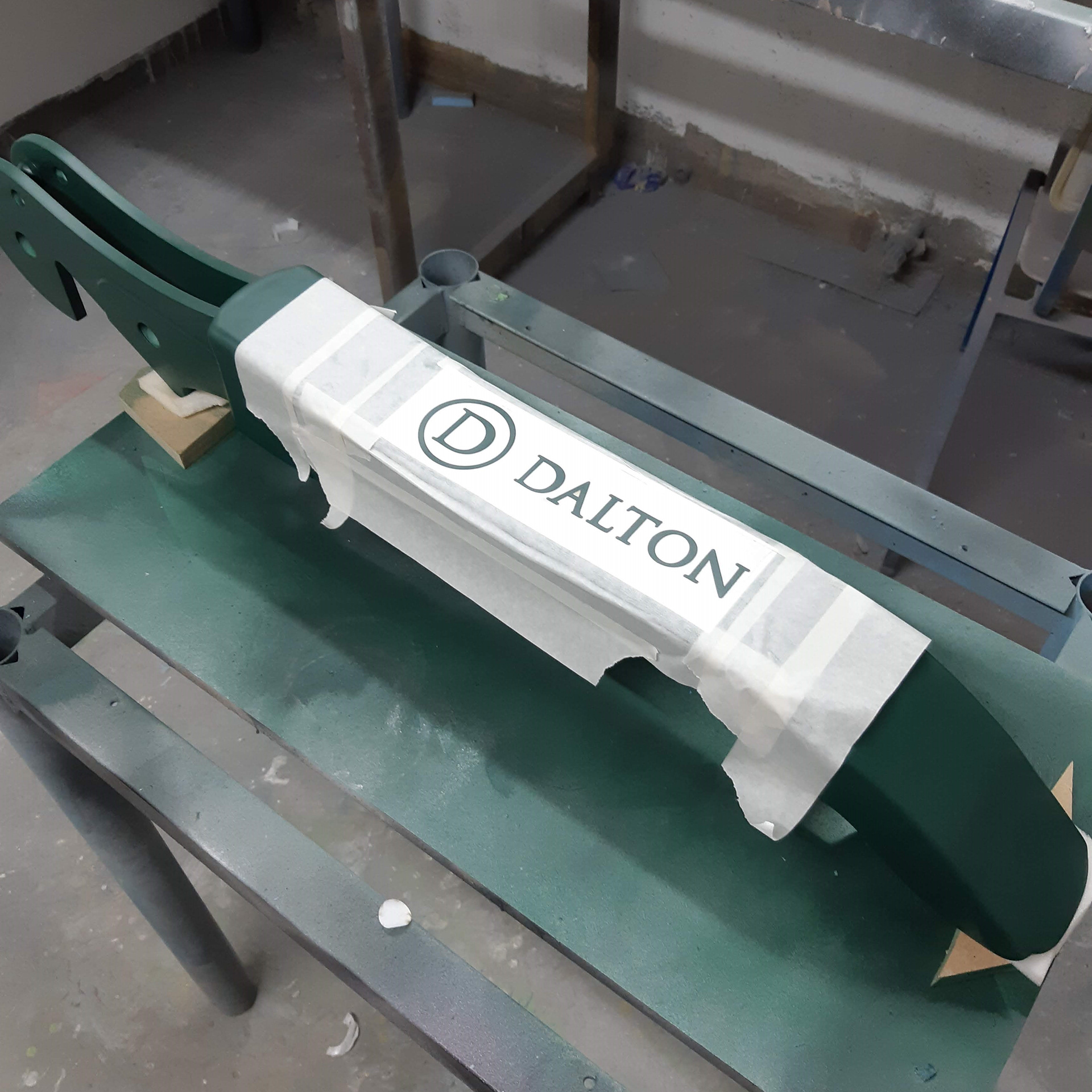

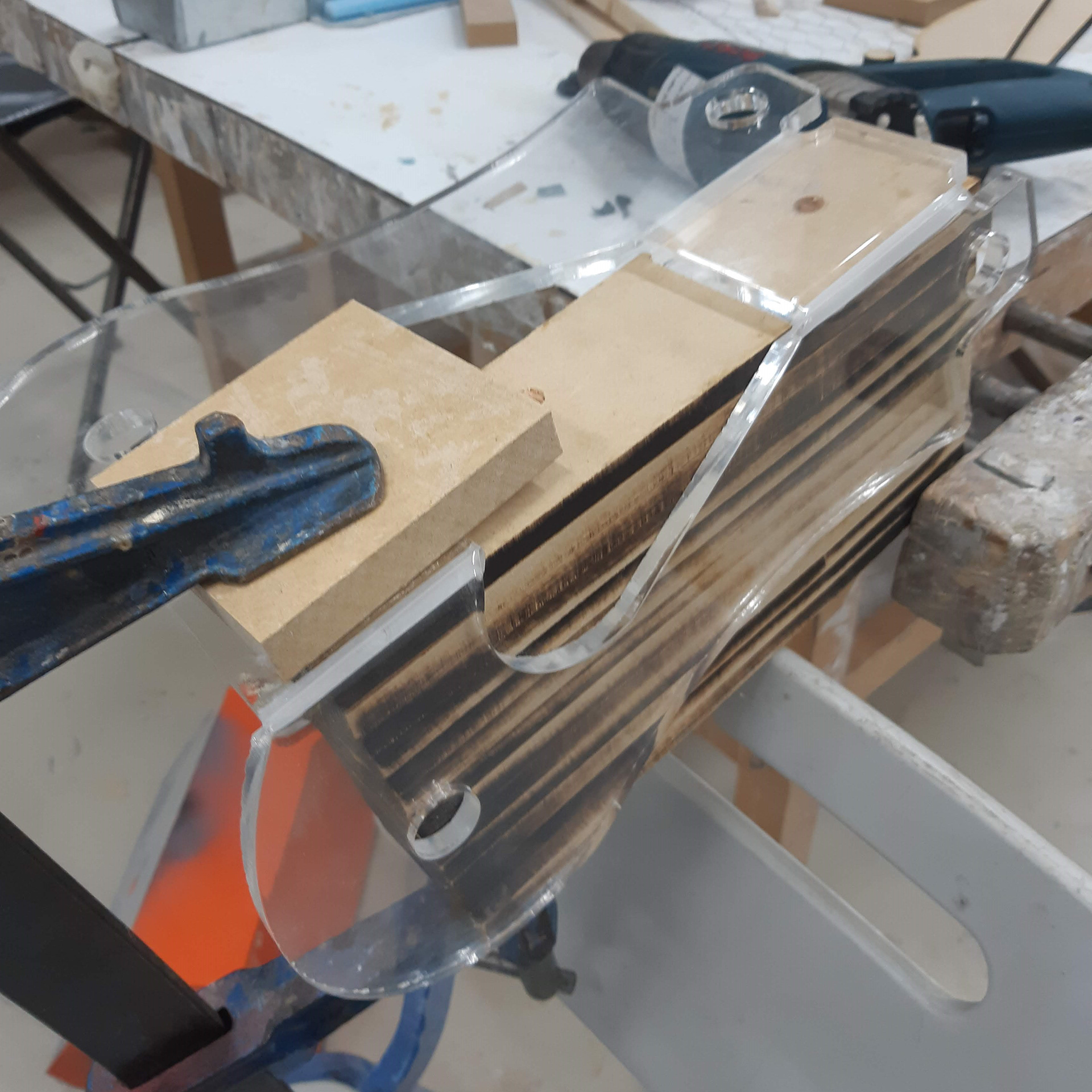

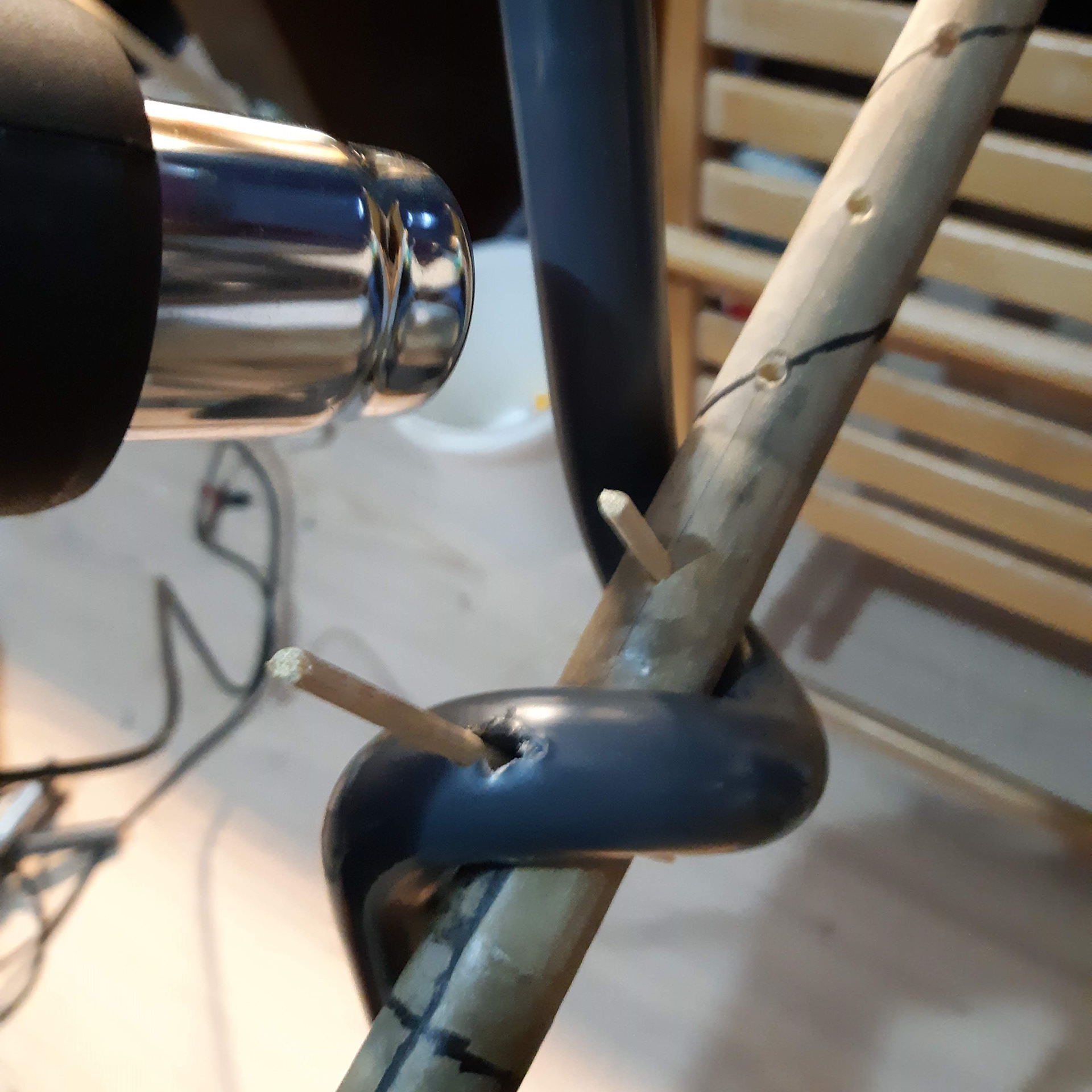

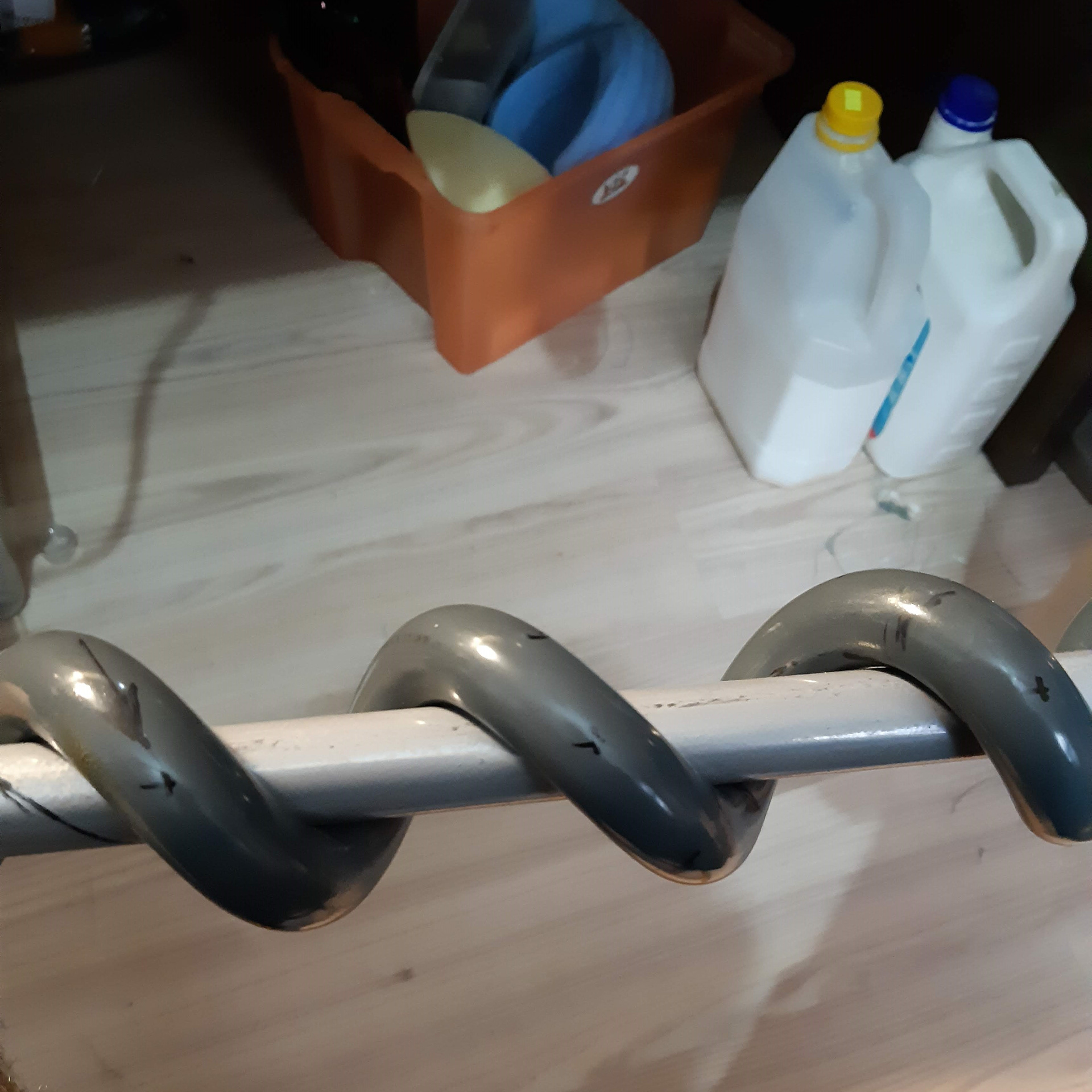

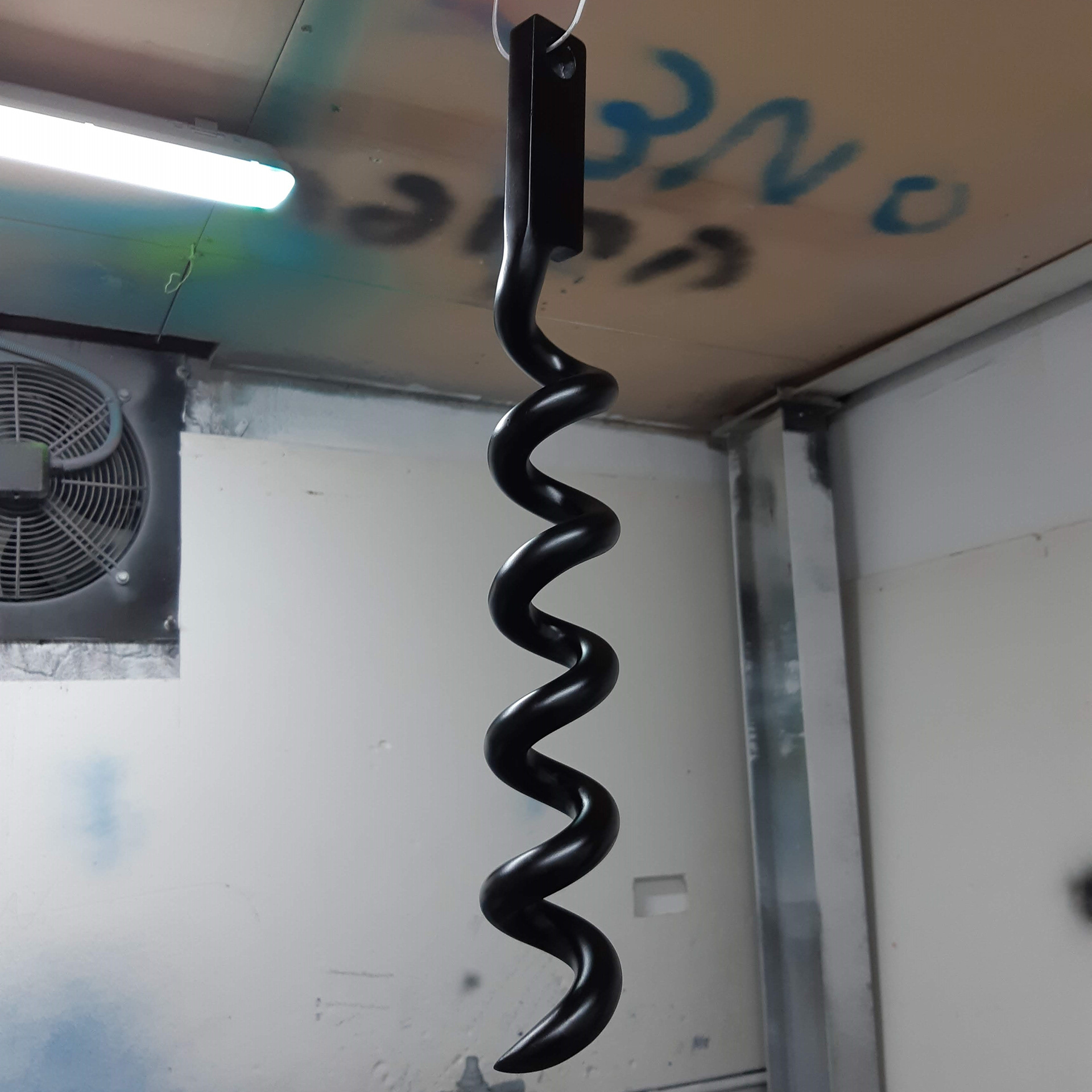

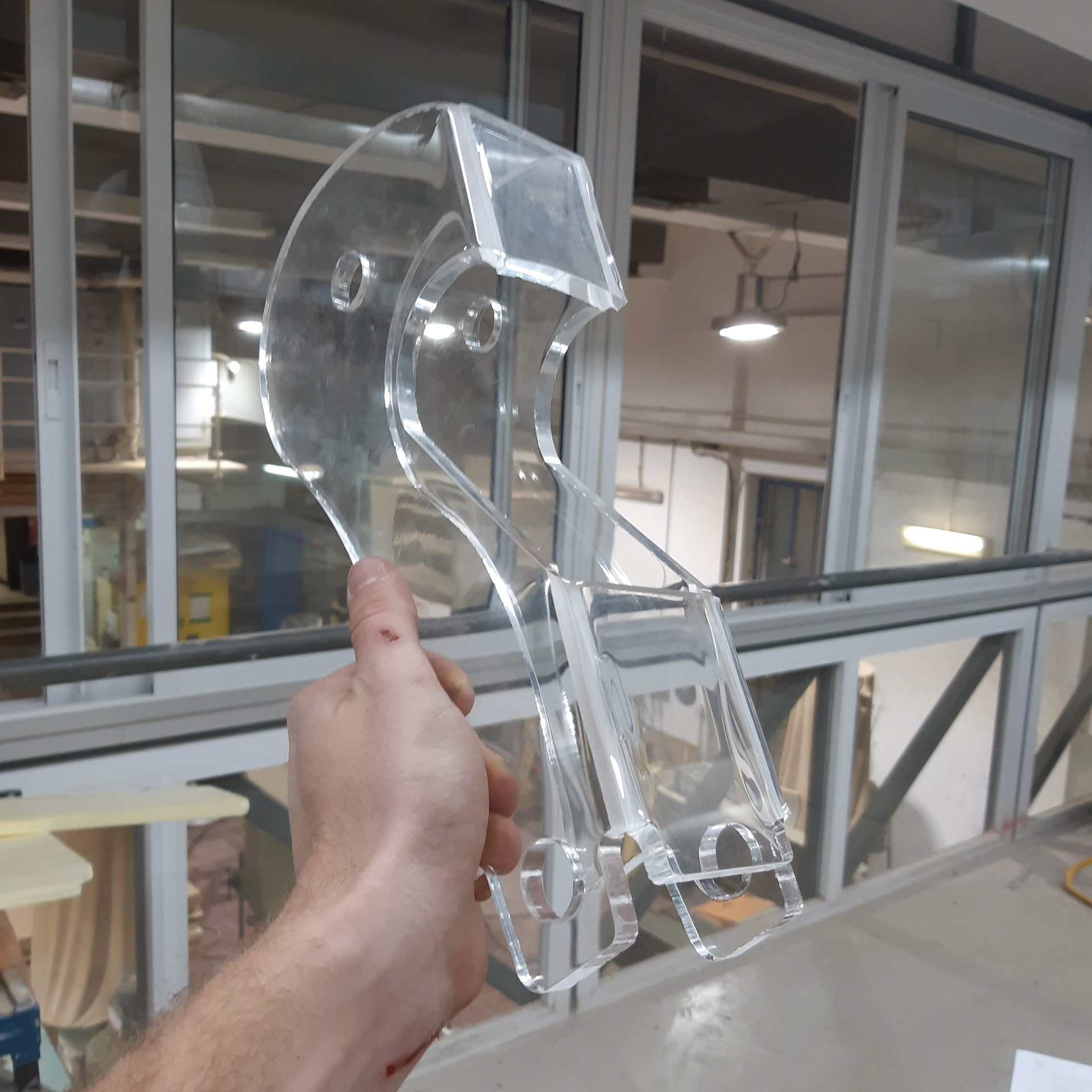

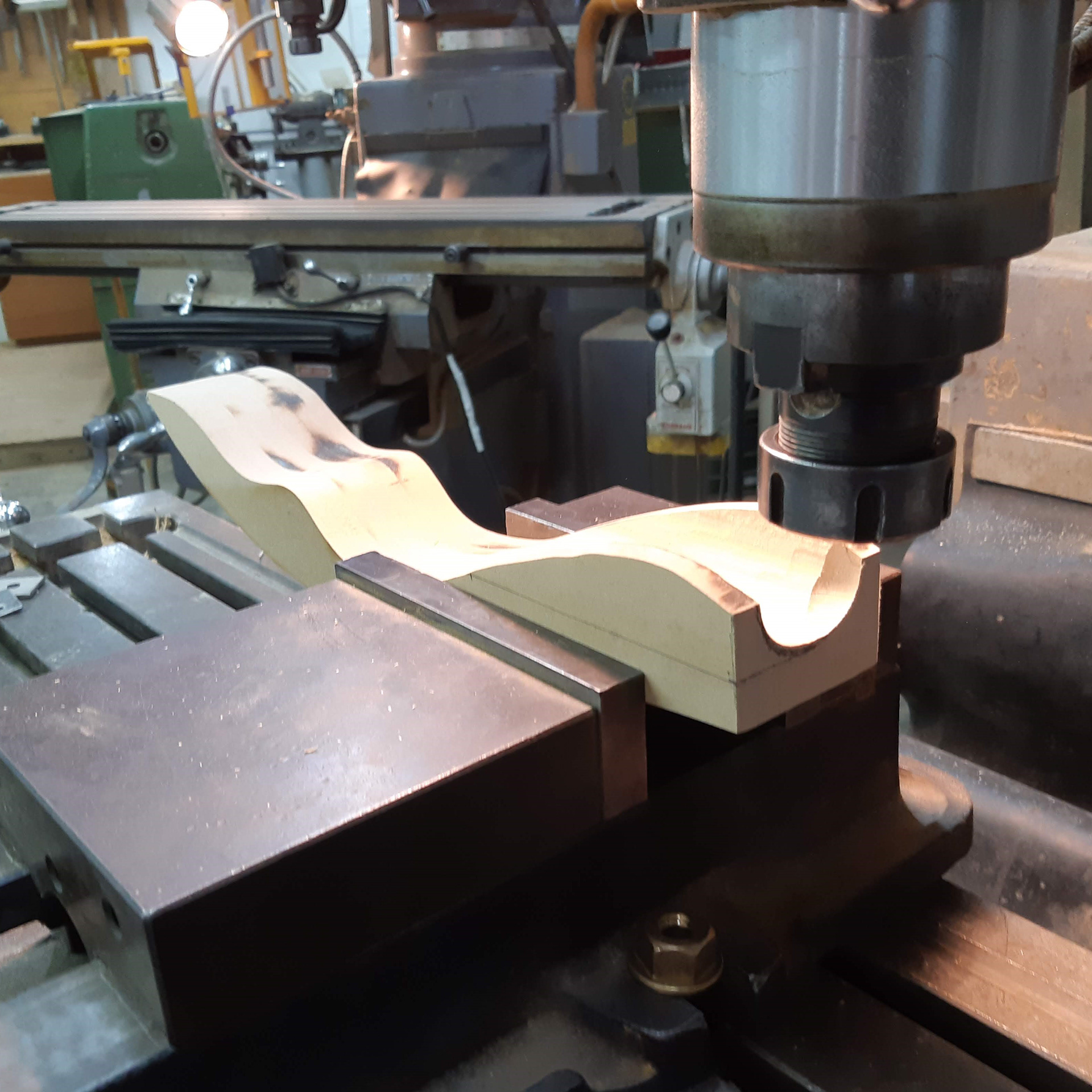

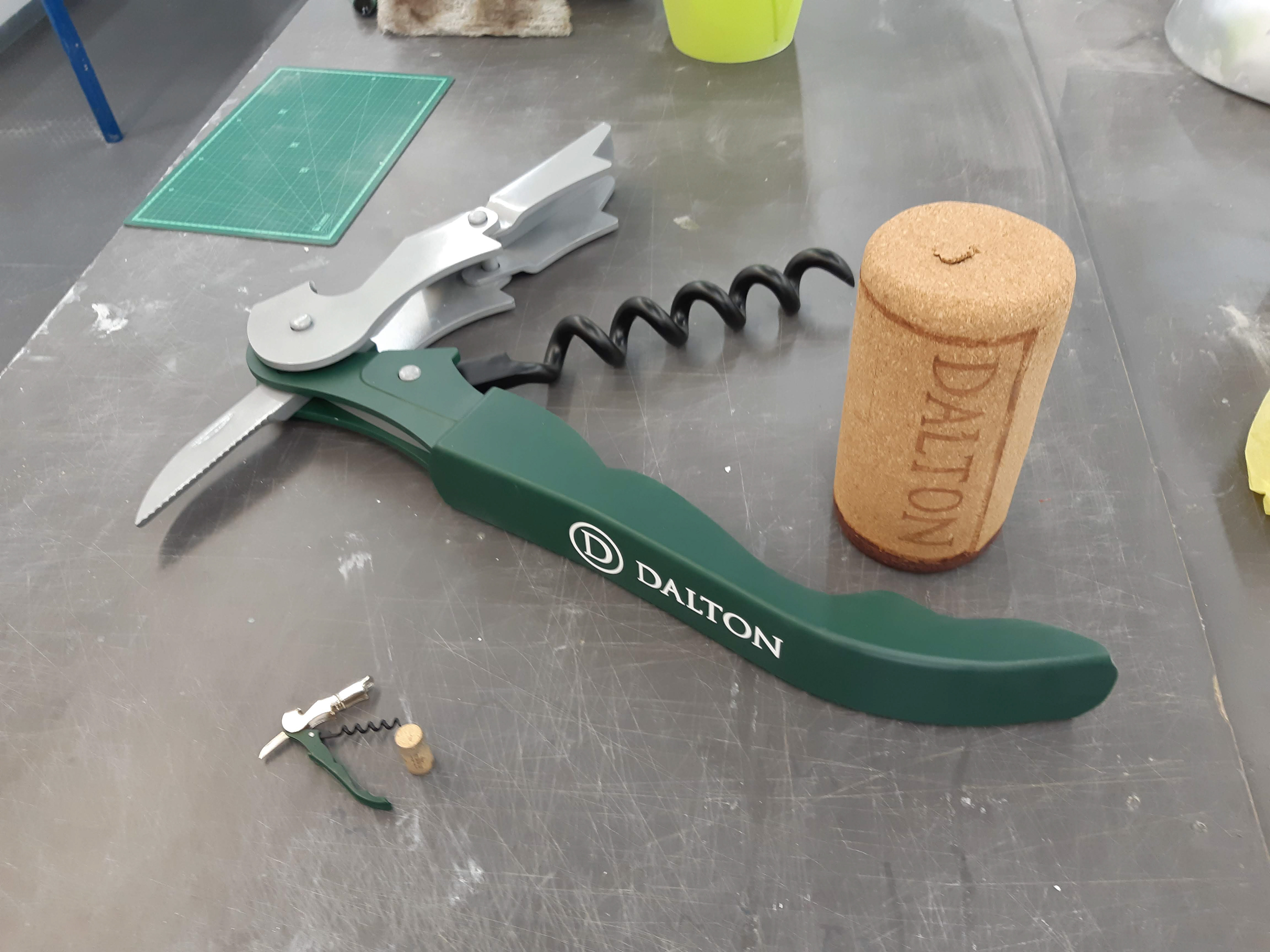

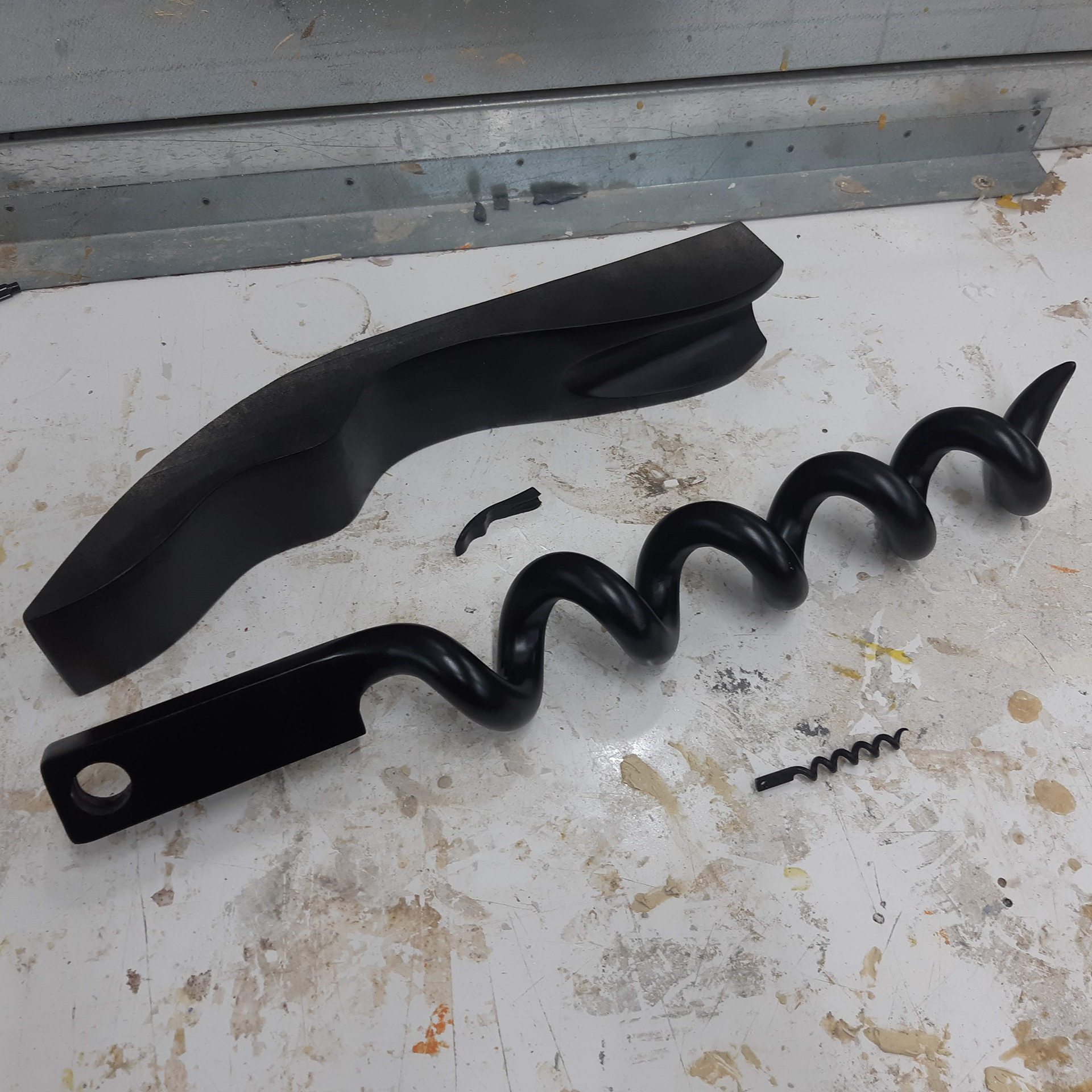

We were assigned to enlarge an object of our choice for our final first-semester submission. I selected a wine opener. The most challenging part was the worm screw. I created it by heating a PVC rod and wrapping it around a broomstick with a heat gun. To maintain a consistent pitch, I drilled a hole after each revolution and locked it in place by inserting a divot. Once the worm screw was complete, I then filled the holes for a smooth finish. The Metal parts are laser-cut perspex that was formed with a heat gun and molds while the rest of the components are layered laser-cut MDF that was machined. To complete the overall project, I made an enlarged cork by layering foam core and wrapping it with a corkboard and finished it off by dipping it in real wine and tearing the top for an authentic look.
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/56dcfe26-61d0-4520-a9f7-99cf76f91441_rw_3840.jpg?h=caef5cbf4e15c9bc1943e77554130305)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/a9154bbc-f213-4bf1-8d2f-6feb508d9473_rw_1920.jpg?h=229703de2305da403101f254120d915f)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/f69d4b36-885a-44e0-ace1-821b6d9f4b83_rw_1920.jpg?h=0003ac96efef353bd37a804d13b625f6)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/7b564760-24a1-4b3b-833d-6c026f664e65_rw_1920.jpg?h=d26da00a99e6cf236a282e9ccf9a4a66)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/41d9562a-5cf8-4ae4-8d51-e80fdabcb0e5_rw_1920.jpg?h=fd6afc92843fdf12ffe55b36115968b9)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/8ba5fb92-90a9-427e-93b8-b7425c4ff0b9_rw_1920.jpg?h=414778f221584a929d1f5ebbd8e7b836)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/9613919e-8b18-4547-8adf-fd1a9ffc2c95_rw_1920.jpg?h=e2c582a2959b9bb599ea72835c7e2c2d)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/e585251c-babe-4e50-a203-fd3b293537ba_rw_1920.jpg?h=b714dd09ef2da2dcb4e41f612fd3073a)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/e453edc3-0306-4248-8755-e12774aeef27_rw_1920.jpg?h=44eae3d63300dbc5e24da9518137a32e)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/5b431225-46a1-4288-9ae0-0f67a8f77220_rw_1920.jpg?h=04438d8226ad3c92f30b6d051e84f32e)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/605f930e-8ce7-4936-957b-21a59bc5bb7c_rw_3840.jpg?h=e0eb0f7beeed06334a04fd6bd4ab64c7)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/e563be23-a5f8-4d6d-956a-418c3d79f9fe_rw_1920.jpg?h=2d45ed7a5148d9498c3f5d47bd77ebd0)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/eff45788-9629-48e8-ad0b-b35403e792b1_rw_1920.jpg?h=1a2bc7638072fd8256d136021c0a5aef)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/3559f75c-db85-4d13-8a7b-39d6b7daa6ea_rw_3840.jpg?h=8c22784abdc0daf7b1f6649febf8744a)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/a37f3b65-1340-4ea1-8ade-a6d9fadb0823_rw_1920.jpg?h=cf1188cfb09703ff9f24cf59fdf08022)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/53e1cc91-b6bb-46e5-83f5-c7ca7de7cb8f_rw_1920.jpg?h=4b1cdf1ab4af859da3587f0de60f4f4f)
![](https://cdn.myportfolio.com/4f3b84ec-b111-4dce-9bf7-6800c398ba2f/1599e02a-0914-4477-a5e8-27c79f3b8343_rw_1920.jpg?h=d19874c000185b8194b6cbd9251634ed)
